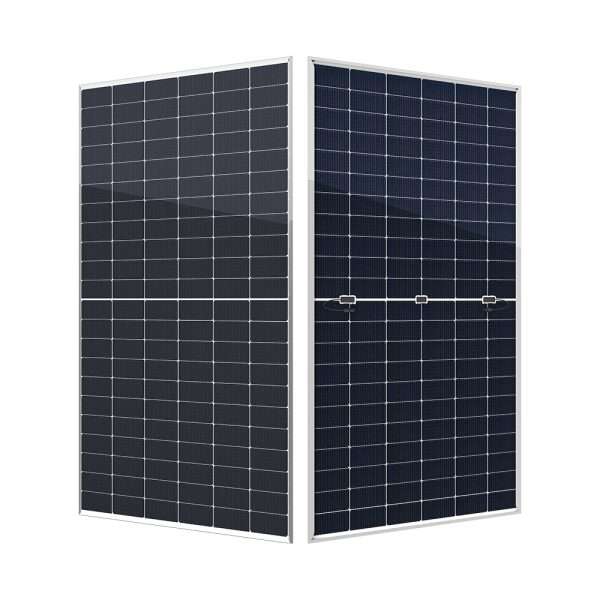

Mono Topcon N-type cell
Bifacial glass PV module
كفاءة عالية
سهولة التركيب
| نوع الخلية | Topcon | |||||
|---|---|---|---|---|---|---|
| Cell dimentison | 182*91mm | |||||
| Cell amount | 72*2 pcs | |||||
| Max.system voltage | 1500V | |||||
| Junction box | IP68 | |||||
| Type of the front glass | 2.0mm,Anti-reflection coating | |||||
| Type of the back glass | 2.0mm,Heat-strengthened glass | |||||
| Frame | Aluminum Alloy | |||||
| كابل | 4mm²,+300,-300mm Length can be customized | |||||
| موصل | MC4 compatible | |||||
| وزن | 30kg | |||||
| Dimention | 2278mm*1134mm*30mm | |||||
| Application level | Class A | |||||
| STC | ||||||
| نموذج | 580TC-RTG | 585TC-RTG | 590TC-RTG | 595TC-RTG | 600TC-RTG | |
| Max.Power(W) | 580 | 585 | 590 | 595 | 600 | |
| جهد الدائرة المفتوحة (فولت) | 51.95 | 52.16 | 52.37 | 52.59 | 52.81 | |
| تيار الدائرة القصيرة (A) | 13.84 | 13.89 | 13.94 | 13.99 | 14.03 | |
| Max.power voltage(V) | 44.02 | 44.22 | 44.43 | 44.63 | 44.83 | |
| Max.power current(A) | 13.18 | 13.23 | 13.28 | 13.33 | 13.38 | |
| Module efficiency | 22.45% | 22.65% | 22.84% | 23.03% | 23.22% | |
| NOCT | ||||||
| Max.Power(W) | 432.1 | 435.8 | 439.6 | 443.3 | 447 | |
| جهد الدائرة المفتوحة (فولت) | 48.08 | 48.27 | 48.47 | 48.67 | 48.87 | |
| تيار الدائرة القصيرة (A) | 11.14 | 11.18 | 11.22 | 11.26 | 11.29 | |
| Max.power voltage(V) | 40.74 | 40.92 | 41.12 | 41.3 | 41.49 | |
| Max.power current(A) | 10.61 | 10.65 | 10.69 | 10.73 | 10.77 | |
| NMOT | 45±2°C | |||||
| Temp.coefficient of ISC | +0.045%/°C | |||||
| Temp.coefficient of VOC | -0.25%/°C | |||||
| Temp.coefficient of Pmax | -0.29%/°C | |||||
| Power selection | 0~+5W | |||||
| Measuring uncertainty of Pm | 0~±3% | |||||
| درجة حرارة التشغيل | -40°C~+85°C | |||||
| Wind load/snow load | 2400pa/5400pa | |||||
| Fuse current | 25A | |||||
| Modules/Pallet | 36 Pieces | |||||
| Packaging Description | 20 Pallets, Total=36×20=720 Pieces | |||||
| Modules/40HQ Container | 720 Pieces |
