Friendly & Flexible

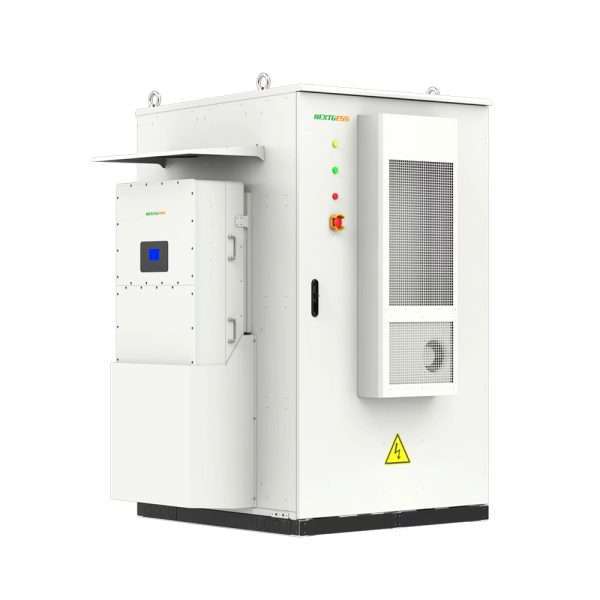

All-in-One battery and hybrid inverter.
Modular design,highly integrated.
Standardized design, easy to expand and maintain.
Support parallel installation.
Fast deployment and quick setup on-site.
Reduces your carbon footprint.
Safe and Reliable
Tier-1 LFP batteries.
Integrated battery management system and thermal management.
Wide operating temperature range.
Fire suppression system.
IP54 for outdoor applications
C3 anti-corrosion
Efficient
Save capex.
Low levelised cost of storage(LCOS)
High energy density,space saving
| Model Number | PQA-BC125261 |
|---|---|
| DC Battery | |
| Nominal Voltage(V) | 832 |
| Rated Capacity(Ah) | 314 |
| Energy(KWh) | 261.248 |
| PV(Input) | |
| Max.PV input power(W) | 250 |
| Rated input voltage(Vdc) | 600 |
| Max.input voltage(Vdc) | 1000 |
| MPPT voltage range(Vdc) | 150~950 |
| Max.PV input current(A) | 42A*10 |
| AC | |
| Rated power(KW) | 125 |
| Rated voltage & frequency | 230/400V,50/60Hz,3L+N+PE |
| THD | <3% |
| Power factor | >0.99 |
| Adjustable power factor | -0.8 leading~0.8 lagging |
| General data | |
| Operation temperature | – 20℃～ 50℃ (>45℃ derating) |
| Relative humidity | 0 ~100%（non-condensing） |
| IP raito | IP66 |
| Altitude(m) | 3,000m (>2,000 Derating) |
| Cooling | Air cooling |
| Dimensions(LxWxHmm) | 1500*1200*2300 |
| Weight(kgs) | about 2600kgs |
| Display and communication | |
| Display | LCD screen |
| Communication protocol | Modbus |
| Communication interface | RS485/CAN/Ethernet/WiFi |
