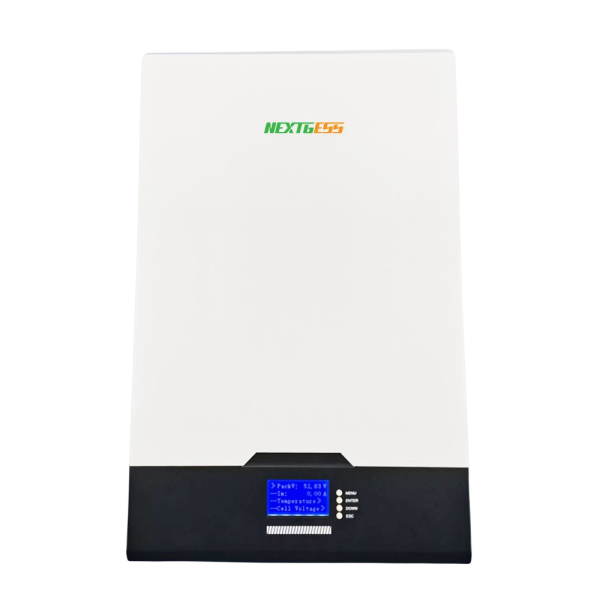

Tier 1 long lifespan LiFePO4 Battery
Smart BMS to protect the battery
LCD display screen monitor
Support parallel connection
Plug & Play
IP21
| Model Number | WMB5K | |
|---|---|---|
| Nominal Voltage | 51.2V | |
| Rated Capacity | 100Ah | |
| Energy | 5120Wh | |
| Internal Resistance | ≤30mΩ | |
| Monthly Self Discharge | <3% | |
| Working Voltage Range | 40~58.4V | |
| Max.Charging Current | 100.0A | |
| Standard Charging Current | 50A | |
| Max.Discharging Current | 100.0A | |
| Continuous Dischargng Current | 50.0A | |
| DOD | 100%(0.2C) | |
| Max.Parallel Qty. | 16 | |
| Dimension(mm) (L*W*H) | 635*400*165mm | |
| Battery Cell | LiFePO4 | |
| IP Class | IP65 | |
| Communication | RS48/CAN/RS232 | |
| Case Material | Metal Case | |
| Weight | 46.5kgs | |
| Operating Temperature | Charging:0°C-60°C Discharging: -10°C~60°C Storage:0°C~40°C | |
| Cycles | >6000 cycles |
