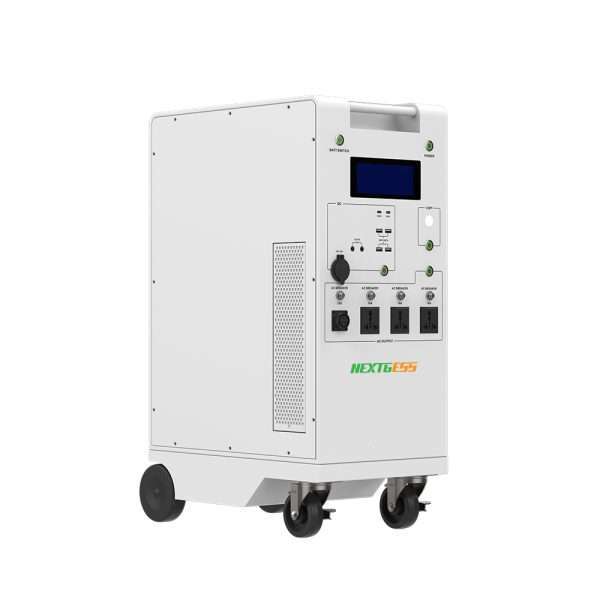

Single-phase off gird hybrid inverter
Tier 1 long lifespan LiFePO4 Battery
Smart BMS to protect the battery
LCD display screen monitor
Plug & Play
IP2
| Model Number | AIO-LA5-5K | AIO-LA6.2-10K |
|---|---|---|
| Input(AC) | ||
| Rated voltage(V) | 230 | 230 |
| Selectable voltage range(V) | 170~280(UPS),90~280(Applilances) | 170~280(UPS),90~280(Applilances) |
| PV & AC Charge | ||
| Max. PV input power(kW) | 5.5 | 6.5 |
| Max. DC voltage(V) | 500 | 500 |
| MPPT voltage range(V) | 60~450 | 60~450 |
| Max.PV input current(A) | 27 | 27 |
| Max.solar charge current(A) | 100 | 120 |
| Max.AC charge current(A) | 30A(80A optional) | 30A(80A optional) |
| Max.charge current(A) | 100 | 120 |
| Output | ||
| Rated output power(kVA) | 5 | 6.2 |
| Rated grid voltage range(V) | 230(Settable) | 230(Settable) |
| Frequency (Hz) | 50 /60 | 50 /60 |
| Switch time(ms) | 10ms(UPS) | 10ms(UPS) |
| Overload projection | 60s@105%-110%, 10s@110%-140%, 5s@>=140% | 60s@105%-110%, 10s@110%-140%, 5s@>=140% |
| AC outputs | 30A Circular Connector×1 10A Universal Socket / 13A UK/16A EU / ect. Standard Socket×3 | |
| DC outputs | USB: 18W×4, Type C: 100W×1, 60W×1 DC: 12V 10A×1, 12V 5A×2 | |
| Battery | ||
| Voltage(V) | 51.2 | 51.2 |
| Operating voltage range(V) | 42~58.4 | 42~58.4 |
| Capacity(Ah) | 100 | 206 |
| Energy(KWh) | 5.12 | 10.54 |
| Battery type | LiFePO4 | LiFePO4 |
| Cycles | 6000 | 6000 |
| Communication interface | RS485/Bluetooth/WiFi/Dry connect | RS485/Bluetooth/WiFi/Dry connect |
| General Data | ||
| Max. efficiency | 96.00% | 96.00% |
| IP Ratio | IP21 | IP21 |
| Operation temperature | – 20℃～ 50℃ | – 20℃～ 50℃ |
| Cooling | Natural | Natural |
| Relative humidity | 5 ~95% | 5 ~95% |
| Altitude | 4,000m(>3,000m Derating) | 4,000m(>3,000m Derating) |
| Dimensions W*D*H (mm) | 450*280*705 | 480*340*755 |
| Display | LCD | LCD |
