Single phase 12KW off gird inverter
64KWh battery capacity
Tier 1 long lifespan LiFePO4 Battery
Smart BMS to protect the battery
Support parallel connection
LCD display
Plug & Play
IP21

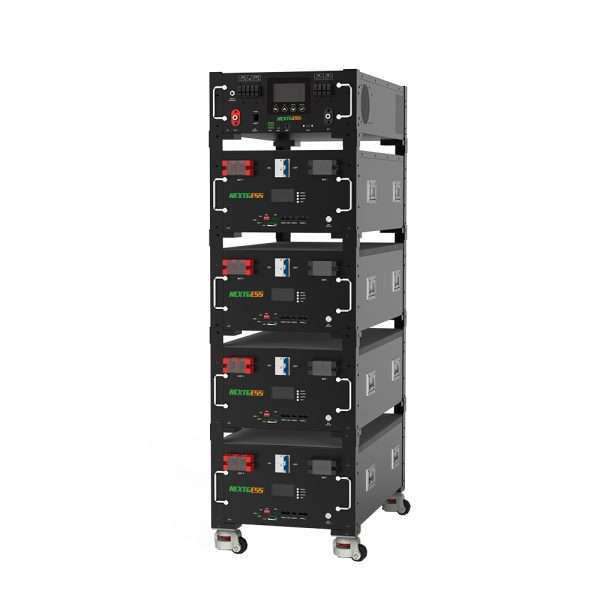

| Model Number | AIO-RL12-64K | |
|---|---|---|
| AC Input | ||
| Rated input voltage(V) | 220-240V 50/60Hz,3L+N+PE | |
| AC Output | ||
| Rated Capacity(KVA) | 12 | |
| Peak power(KVA) | 24 | |
| Output voltage(Vac) | 220-240 | |
| PF | 1 | |
| Switch time(ms) | 10(APP/UPS mode),20 (Gen mode) | |
| Overloads | 5mins@105%-110%,10s@110%-125%, 5s@>125% | |
| Max.efficiency(battery mode) | 94%@48Vdc | |
| PV/AC charge | ||
| Max.PV input current(A)/power(W) | MPPT 27A/9KW+ 22.5A/15KW | |
| Voltage range(Vdc) | 60-450 | |
| Max.open circuit voltage(Vdc) | 500 | |
| Max.PV charge current(A) | 160 | |
| Max.AC charge current(A) | 160 | |
| Max.PV+AC chrage current(A) | 160 | |
| Battery | ||
| Nominal Voltage,range(V) | 51.2V(40.5~58.4V) | |
| Rated Capacity | 1256Ah | |
| Energy | 64.307Wh | |
| Max.Charging/discharging Current | 400/400 | |
| Communication Protocol | RS485/RS232/CAN/Dry connect/USB/WiFi | |
| Dimension(mm) (L*W*H) | Inverter:745*440*176mm Battery pack:745*440*240mm | |
| Cell Type | LiFePO4 3.2V | |
| IP Class | IP21 | |
| Case Material | Metal Case | |
| Operating Temperature | Charging:-10°C-50°C Discharging:-20°C~50°C Storage:0°C~40°C | |
| Cycles | >6000 cycles |
