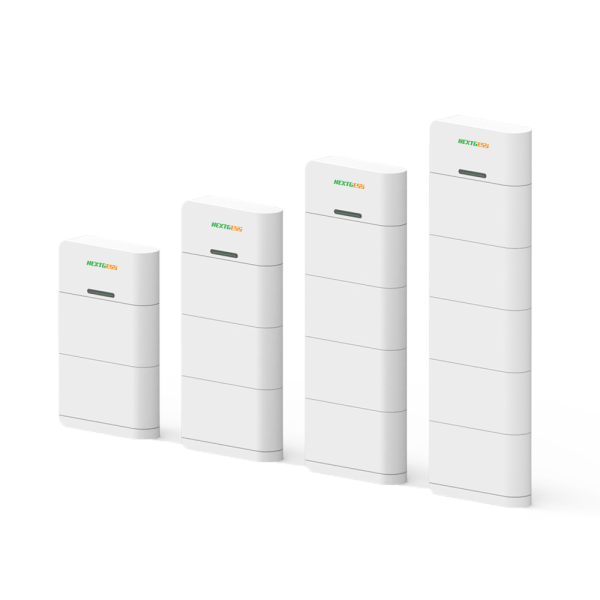

Tier 1 long lifespan LiFePO4 Battery
Smart BMS to protect the battery
4.8KWh module,up to 5 modules
Plug & Play
IP65
| Model Number | HVD10K | HVD15K | HVD20K | HVD25K | |
|---|---|---|---|---|---|
| Nominal Voltage | 192V | 288V | 384V | 480V | |
| Rated Capacity | 50Ah | 50Ah | 50Ah | 50Ah | |
| Energy | 9.6KWh | 14.4KWh | 19.2KWh | 24KWh | |
| Monthly Self Discharge | <3% | <3% | <3% | <3% | |
| Operating Voltage range | 162~216V | 243~324V | 324~432V | 405~540V | |
| Max.Charging Current | 50.0A | 50.0A | 50.0A | 50.0A | |
| Max.Discharging Current | 50.0A | 50.0A | 50.0A | 50.0A | |
| Dimension(mm) (L*W*H) | 680*185*1035 | 680*185*1425 | 680*185*1815 | 680*185*2205 | |
| Cell | LiFePO4 | LiFePO4 | LiFePO4 | LiFePO4 | |
| IP Class | IP65 | IP65 | IP65 | IP65 | |
| Communication | CAN/RS232/RS485 | CAN/RS232/RS485 | CAN/RS232/RS485 | CAN/RS232/RS485 | |
| Monitoring optional | Bluetooth/WLAN | Bluetooth/WLAN | Bluetooth/WLAN | Bluetooth/WLAN | |
| Case Material | Metal Case | Metal Case | Metal Case | Metal Case | |
| Weight | 112kgs | 161kgs | 210kgs | 259kgs | |
| Operating Temperature | Charging:-10°C-50°C Discharging: -20°C~50°C Storage:0°C~40°C | Charging:-10°C-50°C Discharging: -20°C~50°C Storage:0°C~40°C | Charging:-10°C-50°C Discharging: -20°C~50°C Storage:0°C~40°C | Charging:-10°C-50°C Discharging: -20°C~50°C Storage:0°C~40°C | |
| Cycles | >6000 cycles | >6000 cycles | >6000 cycles | >6000 cycles |
